An introduction to genetic algorithms using NSGA-II and pymoo

Most optimisation problems taught in computer science involve searching for the single best solution. From binary search to graph-based shortest path algorithms. We are primarily interested in the smallest cost, largest profit, or least amount of time.

Seldom do these techniques sufficiently solve real-world problems, where nuance and domain knowledge create complex trade-offs and conflicting goals. Often, improving one objective comes at the cost of sacrificing another.

The answer to these limitations can be found in nature: genetic algorithms.

Introduction to Genetic Algorithms?

Genetic Algorithms (GAs) iteratively evolve a population of candidate solutions using elements of the process of natural selection such as crossover and mutation. The GA eventually finds a single or set of optimal solutions to the complex problem.

GAs perform best at solving problems where traditional optimisation techniques are impractical or inefficient.

Why Multi-Objective Optimisation?

In many real life scenarios, objectives conflict. Maximising one objective comes with the trade-off of reducing the optimality of the other objective. For example:

Maximising fuel efficiency may increase manufacturing cost
Optimising machine learning parameters may increase compute time and the risk of over fitting.

Here, an algorithm which produces just one optimal solution does not make sense. The “best” solution depends on the compromise in objectives you are willing to make.

Examples of problems where GAs outperform traditional optimisation techniques:

Solving complex multi-paremeter mathematical functions and equations
Solving scheduling problems (e.g. maintenance, flights, exams)
Finding optimal design configurations (e.g. motor vehicle design)
Feature selection (e.g. optimising parameters in ML models)
Optimising route planning in logistics and transportation.

From Single Best to Tradeoffs: NSGA-II

The aim of NSGA-II is to optimise a set of given objectives, where the objective is a specific, measurable goal that we are attempting to maximise or minimise. NSGA-II works best when objectives are conflicting.

NSGA-II is a non-dominated multi-objective sorting algorithm which adapts the general form of GAs, utilising elitism and crowding distance to return a set of Pareto-optimal solutions. I will explain these concepts in detail in the following section.

Key Concepts

Pareto Fronts

In order to define a Pareto front, we must first understand what it means to be Pareto optimal. Pareto optimality is determined by asking ourselves the question: “Do any solutions that are better in both objectives exist?”. For a solution to be Pareto optimal, there must be no way to improve one objective without worsening another.

Let’s assume we are trying to minimise one objective (Objective 1) and maximise another (Objective 2). In Figure 1, we are determining whether the blue individual is dominated. It is important to note that most visualisations of the stages of NSGA-II are in the objective space—we plot the values of the fitness function, not the values of the variables that led us to this solution. The red individual is worse in Objective 1 since we are trying to minimise this value, but performs better in Objective 2. We ask ourselves, is the blue individual better in at least one objective? The answer is yes, so we can conclude that the red individual does not dominate the blue individual.

Figure 1: Comparing selected individual with a solution better in one objective

We repeat this process for all other individuals in the population, comparing their objective values with our selected blue individual. For the sake of our understanding, Figure 2 demonstrates comparing the blue individual to a solution which is worse in both objectives.

To save time, I will reveal that our chosen individual is better than all other solutions in at least one objective, and therefore, the blue individual is said to be non-dominated and included in the Pareto front (Figure 3). The set of all Pareto optimal solutions forms a Pareto Front.

To determine the first Pareto front (Front 0) we explore the whole objective space, repeating this process iteratively until all Pareto optimal solutions are found. Figure 4 shows Front 0, the set of solutions which are not dominated by another other individual.

Figure 2: Comparing an individual with a solution worse in all objectives

Figure 3: Adding an individual to the Pareto front

Figure 4: Pareto front 0, the set of all optimal solutions

Non-Dominated Storing

Non-dominated sorting is a method of ranking sets of solutions. Subsequent fronts (i.e. the second best set of solutions) can be determined by removing the previous front’s solutions and finding the next set of non-dominated solutions. The sets of solutions are sorted based on their non-dominance. For example, Figure 5 shows all solutions in Front 0 are dominated by exactly 0 other solutions. All solutions in Front 1 are only dominated by solutions in Front 0, and are therefore categorised as the second best set of solutions, and so on.

Figure 5: Non-dominated sorting of fronts

Elitism

A strategy in genetic algorithms where the best one or more solutions in each generation are inserted into the next, without undergoing any change. In the context of NSGA-II, any non-dominated solution is considered elite and therefore injected into the replacement population for the next iteration of the algorithm.

This prevents the loss of the ‘good’ solutions which we have found so far.

Crowding Distance

Crowding distance is a measure to determine the density of solutions in a specific region of the pareto front. If individuals belong to the same front, the algorithm will prefer the solution with the greater crowding distance, as this solution is located in a less crowded region. This mechanism prevents clustering and encourages the population to spread across the entire Pareto front. Figure 6 shows two individuals, A and B, within the same front. If these two individuals were competing for a place in the population, individual B would be preferred as it in a less dense region of solutions.

Figure 6: Spread of solutions in the Objective space

How Does NSGA-II Work?

Generally, GAs are iterations of seven distinct steps:

Initialise a population of candidate solutions
Evaluate the fitness of each solution against a set of objectives
Ranks solutions using non-dominated sorting
Select parents via some predefined selection method
Apply crossover and mutation
Form a new population using elitism and crowding distance
Verify if termination criteria has been met.

The result is a set of optimum choices.

Example using Pymoo

To explore NSGA-II, I’m using Pymoo, an open source framework for multi-objective optimisation in Python with visualisation and decision making capabilities.

Using Pymoo alongside NumPy, Pandas, and Plotly we can perform a complete exploration and visualisation of NSGA-II with the flexibility to define our own objectives, evolve a population of solutions and visualise the Pareto front in an interactive plot.

For those following along, the companion codebase is availabe here: https://github.com/4CDA/genetic_algorithms

Problem Statement

Our task is to evolve a population of cars to produce a set of best possible car design characteristics to optimise fuel consumption, performance and cost.

For the purpose of this tutorial, I am assuming that our three objectives can be modelled as functions of the variables weight, displacement and horsepower, and have defined three proxy equations.

\begin{aligned} \mathrm{fuel} &= 0.003 \cdot \mathrm{weight} + 0.04 \cdot \mathrm{displacement} + 0.02 \cdot \mathrm{horsepower} \\ \mathrm{performance} &= \mathrm{horsepower} \,/\, \mathrm{weight} \\ \mathrm{cost} &= 0.001 \cdot \mathrm{displacement}^{2} + 0.002 \cdot \mathrm{horsepower} \end{aligned}

Note: this example is based on the classic Auto MPG dataset, a commonly used collection of cars and their characteristics from the 1970s to 1980s. Since I have used proxy equations, we need not implement the algorithm with actual data however, a real life implementation would use linear regression to determine the most accurate models of fuel, performance and cost, and use the lower and upper bounds for each explanatory variable as inputs into the NSGA-II model.

Implementing NSGA-II with Pymoo

The NSGA-II algorithm is simple to implement using Pymoo’s relevant functions. There are built in visualisation and decision making capabilities however, Plotly express has been used to create more customisable and interactive 3D plots.

Basic Python and object orientated programming concepts have been assumed. I have also assumed knowledge of visualising data in Python however, if you require a refresher or are new to the data visualisation world, Geeks for Geeks is a great beginner resource, and Plotly has very thorough documentation for those with more experience.

Defining a Problem in Pymoo

Displacement and Horsepower are discrete valued variables, to ensure the algorithm treats them as such, we must define discrete values to replicate real life interpretations of these values.

In the _evaluate function we define decision variables, displacement, weight and horsepower. NSGA-II naturally minimises the objective functions defined just below the above. To ensure our performance function is maximised, we multiply the function by -1.

# define discrete displacement and horsepower values to replicate real life interpretations of these values
DISPLACEMENT_BANDS = np.array([70, 100, 140, 200, 300, 400])
HORSEPOWER_BANDS = np.array([50, 70, 90, 110, 150, 200, 250])

class AutoMPGProblem(ElementwiseProblem):
    def __init__(self):
        super().__init__(
            n_var = 3,
            n_obj = 3,
            xl = np.array([0, 1500, 0]), # lower bounds
            xu = np.array([
                len(DISPLACEMENT_BANDS) - 1,
                5000,
                len(HORSEPOWER_BANDS) - 1
            ]),
            vtype = int  # specify the variables are discrete integers
        )

    def _evaluate(self, x, out, *args, **kwargs):
        disp_idx, weight, hp_idx = x.astype(int)

        displacement = DISPLACEMENT_BANDS[disp_idx]
        horsepower = HORSEPOWER_BANDS[hp_idx]

        # define proxy equations for objectives
        fuel = 0.003 * weight + 0.04 * displacement + 0.02 * horsepower
        performance = horsepower / weight
        cost = 0.001 * displacement**2 + 0.002 * horsepower**2

        out["F"] = [fuel, -performance, cost]

Running NSGA-II in Pymoo

To run the algorithm, we must define the population size and stopping criteria at a minimum. For more bespoke implementations of the algorithm, we can also specify the crossover and mutation operators where we will define parameters such as the probability of crossover. The default values for these operators are used, with the default crossover operator being Simulated Binary Crossover with a probability of 0.9.

# set up algorithm
car_algorithm = NSGA2(pop_size = 400)
car_problem = AutoMPGProblem()

# gather results
car_result = minimize(
    car_problem,
    car_algorithm,
    termination = ('n_gen', 100),
    save_history = True  # set to true so we can plot all generated solutions later
)

Results & Visualisation

As mentioned throughout this article, NSGA-II is efficient at allowing researchers to explore the set of “best” possible solutions. The algorithm will not produce one single “best” solution. Plots of the objective space are the most common visualisations for problems using NSGA-II as we can see the best possible values of the functions we wish to optimise.

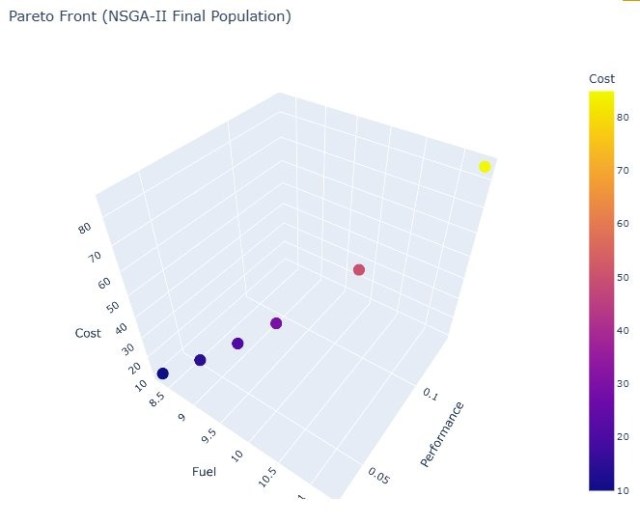

Figure 7 shows an interactive plot of the Pareto front. A tooltip with the objective values will appear when you hover over each solution. Solutions which fall in the middle of the front offer more balance trade-offs, while the extreme solutions optimise one objective more heavily.

Figure 7: Set of the best possible solutions, coloured by their cost

Based on the elitist principles of NSGA-II our Pareto Front should the best solutions generated throughout the algorithm. To confirm this we can plot the set of all generated solutions and colour them based on the Pareto optimality.

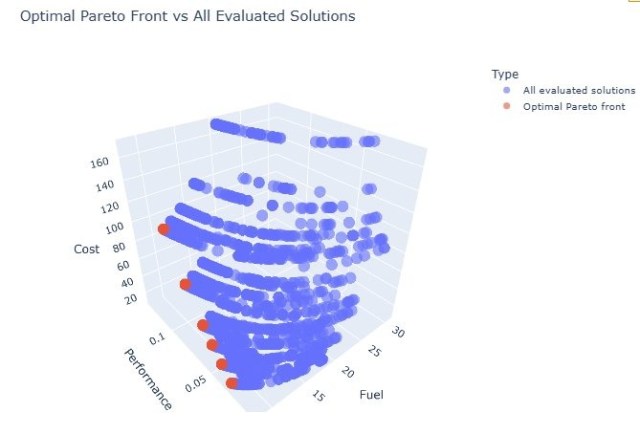

Figure 8 demonstrates a 3D interactive plot of this scenario and confirms our assumption of elitism.

Figure 8: 3D plot of all evaluated solutions and optimal Pareto Front

Applications of NSGA-II

The strength of genetic algorithms, and NSGA-II in particular lies in showing us a set of choices and their trade-offs, not what to choose.

NSGA-II is primarily adopted in engineering, agriculture, manufacturing, and planning problems where trade-offs are unavoidable and stakeholder priorities conflict.

Some published examples include:

Sustainable agricultural systems that consider economic value, ecological sustainability, and management efficiency
Maize irrigation and fertilisation schedule optimisation that balances yield performance, and resource usage
Multi-objective route finding in a multi-node transportation network.

Limitations

Usage of NSGA-II does not come without its limitations, with cost and computation time being large factors in one deciding to seek other techniques. NSGA-II has an estimated time complexity of O(MN^2), where M is the number of objectives to be optimised, and N is the size of the population. NSGA-II works well without parameter fine tuning for small populations; however, for less trivial problems with large population sizes, parameters start to significantly influence the cost and efficiency of the algorithm.

Results are dependent on the encoded fitness functions, if these functions change or are found to be incorrect estimates of real life, the results of the algorithm become redundant. Broadly speaking, reducing complex and nuanced problems into relatively simple equations is a problem most computer simulations struggle with. Researchers are required to drastically simplify reality for the results to be understandable.

In Summary

To add to our example we could further include fitting of the objective models using linear regression, or combining different optimisation techniques to explore the solution space.

While relatively simple to implement in Python, NSGA-II has the capacity to expose nuance and complexities in real life multi-objective problems, where subject matters and stakeholder priorities are considered.

A powerful tool for solution set optimisation, the final decision ultimately remains in the hands of the subject matter expert, a key differentiator between NSGA-II and single-objective optimisation techniques. The algorithm can become expensive and complex very quickly so it is important to consider the use case and viable options before attempting to implement the algorithm.

The companion codebase can be found here: https://github.com/4CDA/genetic_algorithms

Reference

Genetic Algorithms: Nature-Inspired Optimization for Solving Complex Problems. https://medium.com/@derya.cortuk/genetic-algorithms-nature-inspired-optimization-for-solving-complex-problems-4dd893a9cb2c

Chapter 4: Selection Strategies. https://algorithmafternoon.com/books/genetic_algorithm/chapter04/

Selection Methods for Genetic Algorithms. https://www.researchgate.net/publication/259461147_Selection_Methods_for_Genetic_Algorithms

Crossover in Genetic Algorithm. https://www.geeksforgeeks.org/machine-learning/crossover-in-genetic-algorithm/

Pareto Optimality. https://www.sciencedirect.com/topics/engineering/pareto-optimality

What is Elitism. https://www.igi-global.com/dictionary/multi-objective-evolutionary-algorithms/9592

Crowding Distance. https://www.sciencedirect.com/topics/computer-science/crowding-distance

An Introduction to Genetic Algorithms, Melanie Mitchell, 1999. https://www.boente.eti.br/fuzzy/ebook-fuzzy-mitchell.pdf

Decision trees are a popular operations research tool to aid decision analysis, providing a tree-like model of decisions and their possible consequences. It is a popular technique in many industries from financial services, healthcare, through to asset heavy industries like mining and oil and gas. In this article we specifically explore its suitability for predictive maintenance using an example Kaggle dataset.

In this introduction to decision trees, we aim to:

Provide an overview of decision trees and predictive maintenance
Explore the suitability of decision trees in conducting predictive maintenance using an example Kaggle dataset
Discuss outcomes and future improvements

What is Predictive Maintenance?

A basic introduction to predictive maintenance is provided in our previously published article that introduces predictive maintenance using the NASA turboengine dataset.

Predictive maintenance (PdM) is maintenance that monitors the performance and condition of equipment during normal operation to reduce the likelihood of failures
http://www.reliableplant.com/

In summary—predictive maintenance is concerned with monitoring the current condition of equipment to predict when maintenance will be required, so the maintenance can be performed at the optimal moment, hopefully reducing costly unplanned downtime.

Decision Trees and Predictive Maintenance

Decision trees are a compelling tool in predictive maintenance because they mirror how engineers and operators think which is through structured, rule-based logic (Patel and Prajapati 2018). At their core, these models evaluate sequential “if-then” conditions such as if vibration is high and operating hours exceed 2,000, then predict failure. The tree begins with a root node, which represents the full dataset and initiates the first split. From there, decision nodes apply yes/no logic based on specific thresholds (e.g., is temperature > 80°C?), progressively segmenting the data. The process ends at leaf nodes, which deliver the final prediction which is typically, failure or no failure.

What makes decision trees especially valuable is their ability to uncover complex interactions between variables during training. Failures rarely stem from a single factor. More often, it’s the combination that signals risk e.g. moderately high torque combined with elevated temperature. Trees automatically learn and capture these layered patterns as part of the training process.

Each split is chosen based on how effectively it separates failure from non-failure cases. The algorithm evaluates every potential threshold using measures like information gain or Gini impurity, which quantify how much uncertainty is reduced by a given split. In simple terms, the model selects the question that brings the most clarity at each step, ensuring that the tree’s structure is both interpretable and statistically grounded.

In practice, we use features like air and process temperature, rotational speed, torque, vibration levels, and total run-time. The model then identifies patterns that consistently precede failures. The result is a transparent ruleset that not only predicts issues early but also surfaces the conditions that lead to them, supporting smarter maintenance decisions and reducing unplanned downtime.

Figure 1: Example Decision Tree for Predictive Maintenance

From Decision Trees to Ensemble Methods: Balancing Transparency and Accuracy

While decision trees provide clear, interpretable logic aligned with how engineers think, they are prone to overfitting, especially on limited or noisy datasets common in predictive maintenance. Ensemble methods such as random forests and gradient boosting build on this foundation, combining multiple trees to improve robustness and predictive accuracy without sacrificing transparency. Random forests aggregate many trees trained in parallel on random data subsets, reducing variance and improving accuracy. Gradient boosting, meanwhile, builds trees sequentially to correct previous errors, achieving higher precision but requiring careful tuning to prevent overfitting.

Advanced Algorithms and Industrial-Scale Implementation

The last decade has seen significant improvements in ensemble algorithms and their practical deployment. Open-source libraries like scikit-learn offer solid baseline implementations, while specialised tools such as LightGBM and CatBoost deliver faster, more scalable solutions tailored for large-scale sensor data and complex machine configurations. These frameworks enhance computational efficiency and simplify feature handling, enabling faster model iteration and deployment in industrial environments.

Snapshot-Based Modelling for Practical Predictive Maintenance

Rather than modelling full time series data, predictive maintenance models often rely on snapshot data, which are individual records capturing a machine’s operational state at a point in time. This approach preserves critical temporal insights, such as the cumulative effect of vibration and runtime on failure risk, without the complexity of sequence modelling. Trained on historical snapshots and validated rigorously, these models can classify real-time machine data to enable early intervention and reduce unplanned downtime.

Customization: The Key to Outperforming Off-the-Shelf Models

Off-the-shelf ensemble models provide a valuable starting point but often fall short in industrial contexts. Custom models incorporate domain knowledge directly, leveraging operational thresholds, historical failure patterns, and tailored loss functions that emphasise the cost of missed failures. They are also better suited to handling imbalanced data where failure events are rare. Through techniques like re-weighting and threshold adjustment, these models prioritise early warning and operational relevance. Finally, custom pruning and ensemble size optimisation strike a balance between predictive power and interpretability delivering actionable insights that integrate seamlessly into maintenance workflows and real-time monitoring systems.

Example: Applying Decision Trees to Predictive Maintenance

Data Overview and Initial Exploration

Our starting point is a cleaned machine sensor readings and operational metrics Kaggle dataset, with the failure outcome transformed into a binary variable indicating whether a failure occurred within a future window.

While the exact duration of the prediction window isn’t specified, the failure label still offers a useful basis for identifying pre-failure patterns and training models to distinguish normal from at-risk conditions.

Figure 2: Dataset Overview

Early data exploration showed no obvious difference between failure and non-failure cases when looking at individual variables like temperature, speed, or torque.

Figure 3: Feature Distribution by Failure Status

Statistical tests including unpaired unequal variance t-tests and Mann-Whitney tests confirmed this observation: no single sensor reading or metric on its own significantly separates failures from normal operation (all p-values > 0.05). This highlights a key challenge in predictive maintenance where failure events are rarely triggered by one factor, but by complex combinations of conditions. Full test results can be found in the codebase here.

Why Use Decision Trees?

Given the lack of simple linear separability in the data, we applied decision trees, which excel at capturing layered “if-then” logic reflecting real-world interactions. By modelling how variables combine, decision trees can detect subtle patterns in the sensor data that precede failures.

Applying Off-the-Shelf Models

Following our exploratory analysis, we prepared the data for modelling. The dataset was split into training and testing sets while preserving the failure-to-no-failure ratio using stratified sampling. To handle categorical variables, we applied one-hot encoding, and numerical features were standardised for consistency.

Because failure events are rare, we applied SMOTE (Synthetic Minority Oversampling Technique) on the training data to generate synthetic samples of the minority failure class, improving the model’s ability to learn these critical patterns.

We then trained and evaluated several classification models, including traditional machine learning algorithms from scikit-learn (Decision Tree, Random Forest, Gradient Boosting, AdaBoost), alongside popular gradient boosting frameworks such as XGBoost, LightGBM, and CatBoost. Each model was trained on the balanced training data and tested on the holdout set using key metrics like precision, recall, F1-score, and accuracy. See full classification report below.

Key Finding

Surprisingly, the straightforward Decision Tree model outperformed both Random Forest and all tested gradient boosting methods. This indicates that, for this dataset and problem, a simple, interpretable model captured essential patterns better than more complex ensembles.

Starting with scikit-learn’s decision trees offers a strong, easy-to-understand baseline before exploring more sophisticated approaches.

Summary of Model Accuracies

Model	Accuracy
Decision Tree	0.9200
Random Forest	0.8100
Gradient Boosting:	0.8300
AdaBoost:	0.7900
XGBoost	0.8500
LightGBM	0.8400
CatBoost	0.8600

While these off-the-shelf models provide a valuable starting point, building custom models tailored to specific domain knowledge remains essential. Custom models can integrate operational thresholds, balance strategies, and splitting criteria that reflect real-world failure dynamics, leading to better performance and more actionable insights.

Custom-built decision tree

We began by building a custom decision tree classifier from the ground up, using entropy-based splits and information gain to create a transparent and interpretable model. To address the class imbalance in the dataset, we applied upsampling techniques to ensure balanced training. This approach allowed us to tailor the splitting criteria and training process specifically to the maintenance failure prediction problem.

Next, we benchmarked this custom decision tree against established scikit-learn algorithms, including Random Forest and Gradient Boosting classifiers. The results aligned with expectations:

The custom decision tree achieved an accuracy of 0.84,
The Random Forest improved to 0.89, and
The Gradient Boosting model significantly outperformed both, achieving an accuracy of 0.96.

Only the custom-built gradient boosting model surpassed the performance of standard libraries, underscoring the strength of boosting techniques in failure prediction tasks. This progression highlights the advantage of ensemble methods over standalone trees and validates our custom implementation as a solid baseline for future experimentation.

Classification Report: Custom Models vs. Off-the-Shelf Decision Tree

A classification report provides a detailed assessment of a machine learning model’s performance on a classification task. It breaks down key metrics like precision, recall, F1-score, and accuracy for each class in this case, “failure” and “no failure.” These metrics help evaluate how well the model identifies rare but critical events, such as equipment failures, and are particularly important in imbalanced datasets common in predictive maintenance.

When benchmarked against the best-performing off-the-shelf decision tree on the Shelf dataset, our custom-built models show significant improvements, particularly in detecting the minority failure class:

Metric	Off-the-Shelf Decision Tree	Custom-Built Gradient Boosting
Accuracy	0.92	0.96
Precision (No Failure)	0.95	1.00
Recall (No Failure)	0.97	0.93
F1-Score (No Failure)	0.96	0.97
Precision (Failure)	0.40	0.93
Recall (Failure)	0.29	1.00
F1-Score (Failure)	0.33	0.96

The off-the-shelf model struggles particularly with the minority failure class, reflected in low recall (28.6%) and precision (40.0%), indicating many missed failures and false positives. Conversely, the custom gradient boosting model achieves near-perfect recall and precision for the failure class, effectively detecting all failure cases without compromising performance on the no-failure class. This stark contrast highlights the effectiveness of the custom model’s tailored splitting strategy, balanced training, and boosting methodology, making it a superior choice for critical predictive maintenance applications.

What is feature importance and why does it matter?

Before diving into specific features, it’s important to understand what feature importance tells us. Feature importance reveals which variables the model depends on most to make accurate predictions. In predictive maintenance, this highlights the operational and environmental conditions that have the greatest influence on failure risk. These insights allow maintenance teams to focus their attention where it matters most.

Our custom gradient boosting model identifies “Operational Hours” as the most influential factor in predicting equipment failure, with a feature importance score of 0.5427. For maintenance teams, this emphasises the importance of closely tracking equipment runtime to plan preventive maintenance and avoid costly downtime.

“Air Temperature” is the next most important feature (importance: 0.1312). High or fluctuating temperatures can cause components to overheat or degrade more quickly, underscoring the need to monitor environmental conditions and possibly implement climate control or adjust operating parameters during extreme weather.

Other relevant features include:

Rotational Speed [rpm]: 0.1034
Process Temperature [K]: 0.1022
Torque [Nm]: 0.0575
Vibration Levels: 0.0562

Low importance was found for categorical variables like “Machine Type”.

Figure 4: Feature Importance

To better understand how these features influence individual predictions, we use SHAP (SHapley Additive exPlanations) values. SHAP helps explain the contribution of each feature on a case-by-case basis, showing whether a factor increases or decreases the risk of failure. This granular interpretability builds trust and allows maintenance teams to make informed decisions grounded in model insights.

Figure 5: SHAP (SHapley Additive exPlanations) Chart

Model Interpretability and Deployment

While standalone decision trees can be visualised fully as simple, intuitive diagrams ideal for explaining decision logic (see example decision tree diagram below) the situation is different for ensemble models like Random Forest and Gradient Boosting. Although it is possible to visualise a single tree from these ensembles, doing so does not provide the full picture, as the overall prediction depends on the combined decisions of many trees. This makes it impractical to display the entire model as a single, comprehensive diagram.

Figure 6: Visualization of a custom-built decision tree

In Summary

Although ensemble methods usually provide superior accuracy and precision compared to a single decision tree, their complexity means they require alternative interpretability tools like SHAP, as well as deployment within user-friendly interactive applications such as Streamlit or Gradio. These platforms allow users to interact with the model, explore feature impacts, and obtain understandable predictions, bridging the gap between model complexity and operational usability.

Predictive maintenance is a critical application of machine learning that transforms raw sensor data into actionable insights, helping to anticipate equipment failures before they occur. Decision trees provide a transparent, rule-based framework that mirrors human decision-making, making them especially valuable for understanding complex interactions in machine sensor data. However, their tendency to overfit and limited accuracy on complex datasets often calls for more robust ensemble approaches like Random Forests and Gradient Boosting.

The example shows that while off-the-shelf models offer a strong starting point, custom-built models tailored with domain expertise, (especially custom gradient boosting) can significantly improve predictive performance and failure detection. This is crucial in industrial settings where missing a failure can have costly consequences. Moreover, feature importance analysis and SHAP explainability reveal key factors such as “Operational Hours” and “Air Temperature” that drive failure risk, providing practical insights for maintenance planning.

Standalone decision trees shine in interpretability, with clear visualisations of their decision paths supporting straightforward communication and decision making. In contrast, ensemble models trade off some interpretability for superior accuracy and require advanced tools like SHAP and interactive deployment platforms (e.g., Streamlit, Gradio) to bridge this gap.

Ultimately, these models, both transparent trees and powerful ensembles, serve as valuable benchmarks and practical tools. They enable maintenance teams not only to predict failures with high confidence but also to understand and act on the underlying causes, driving smarter, more cost-effective maintenance strategies.

By integrating these approaches into real-world systems, organisations can reduce downtime, optimise resource allocation, and extend equipment life, demonstrating the transformative potential of machine learning in predictive maintenance.

The companion codebase for this post can be found here: https://github.com/4CDA/predictive_maintenance_decisiontrees

Reference

Gradient Boosting vs. Random Forest: Which Ensemble Method Should you Choose? https://medium.com/@hassaanidrees7/gradient-boosting-vs-random-forest-which-ensemble-method-should-you-use-9f2ee294d9c6

What is a decision tree? https://www.ibm.com/think/topics/decision-trees

Scikit-learn 1.7.0 documentation. 1.10. Decision Trees. https://scikit-learn.org/stable/modules/tree.html

Patel, H.H. and Prajapati, P., 2018. Study and analysis of decision tree based classification algorithms. International Journal of Computer Sciences and Engineering, 6(10), pp.74-78.

Surucu, O., Gadsden, S.A. and Yawney, J., 2023. Condition monitoring using machine learning: A review of theory, applications, and recent advances. Expert Systems with Applications, 221, p.119738.

Discrete event simulation is a powerful tool used across industries to analyse and optimise operations and processes. Ever since its founding in the late 1950s, alongside the emergence of computer science, discrete event simulation has come a long way in terms of development and usefulness.

In this introduction to discrete event simulation, we aim to:

Provide an overview of discrete event simulation
Provide an overview of the software tools available for discrete event simulation
Pinpoint what problems discrete event simulation can solve and how it can be useful for your business
Explain the steps involved in building a discrete event simulation model
Provide example scenarios in which discrete event simulation can be applied, including simple and complex scenarios.

What is Discrete Event Simulation (DES)?

A discrete-event simulation (DES) models the operation of a system as a (discrete) sequence of events in time.
Discrete Event Simulation, Wikipedia

DES can be used to simulate almost any process you can think of whether it be as simple as waiting at the deli to receive an order, or as complicated as advanced manufacturing. Regardless of how complicated a DES model may be, there are three key characteristics that are seen within all simulations:

Event-Based: The simulation progresses by moving from one event to the next in time (rather than discrete even time slices).
Discrete State Changes: The state of the system changes only at these discrete points in time.
Stochastic or Deterministic: Events can occur based on a probability distribution (stochastic) or can be predetermined (deterministic).

The third characteristic, specifically the stochastic trait, is likely the most important as this trait allows us to model real-life operations within realistic parameters and data gathered from past experiments, which can help us gather realistic results and help solve problems.

Each DES model requires the following to properly function:

Simulation Entity – A basic entity that can run through the simulation
Entity Generator – Generates entities to run in the simulation (usually serves as the beginning of a process)
Queue – Stores received entities until they are needed for the next component
Server – Processes a received entity for a specific duration (represents a timed event that requires a specific entity)
Entity Sink – Destroys any entity received (serves as the end of a process).

To show how all of this comes together, a very basic model that contains and links each part together to create a process flow is illustrated below.

DES Model Example

An explanation of the the above example:

The simulation begins with the simulation entity “SimEntity1” being generated by the entity generator “EntityGenerator1“
After being generated, the entity travels to the server’s queue “Queue1” and “Server1” and waits there until all other entities have been processed by the server
Once its past the queue, the server processes the entity for a specific time
Finally after the server, the entity travels to the entity sink “EntitySink1″ where the entity is then destroyed, thus representing the end of the process for that entity.

Note: All the DES model examples in this article are made using a open source simulation software JaamSim, which will be explained in detail later in this article.

DES Approach to Problem Solving

Discrete event simulation thrives when it comes to running multiple nodes at once, debottlenecking and optimization.

To put this into perspective, lets explore the hypothetical example of designing a new airport. You know that for people to get to their respective gate and flight, there must be several services desks for checking-in bags and other processes, a security process, and several different terminals for passengers to travel to. Other amenities include shops, restaurants, bathrooms, elevators, escalators, and so on. Applying DES here would take all of these “nodes” into account when building the airport and determine what is the best way to optimally utilise each node. So for this example, we would build an example model of the airport with DES under the allocated resources (money, staff, etc.) that are available and run that model within specific parameters to gather passengers’ total time traveling throughout the airport as well as other data. Then, we would view the data and try to determine what node has the greatest impact on the passengers’ overall travel time. Finally, we would return to the model, edit this node or “potential bottleneck” and run the model again to get different results. We would then repeat these steps in a trial-and-error fashion until we find the bottleneck of the airport system and create the most optimised layout of the airport.

Ultimately, DES is utilised to solve efficiency-related business process problems, as DES always proposes the following question: “What are the best changes that can be made in order to truly optimise a process?”

The specific steps taken for organisations to reach this optimisation and efficiency can be shown by the DES Engagement Process. The engagement process is outlined below.

1. Understanding the Process

When you approach a problem, understanding what you are actually solving and optimising is likely the most important part of the process. This includes not only having well documented background information, but also having tacit knowledge of the problem. There is a lot of value to be held within this “discovery phase”, as this phase can lead to a lot of opportunities for improvement right away if done properly.

Important considerations include:

Learning what process you are modelling
What events are involved and the order of these events
How these events start, how they end, and what they produce
Which parts of the model can represent which events (what servers and other process flow parts can represent).

2. Gathering Statistical Distributions

It is important to gather the proper statistics for a problem while keeping note of the objective function. This means that the data you collect represents something that can be improved upon and measured by going through this entire process, whether it be making something cheaper, more efficient, higher throughput, and so on. However, keeping in mind the realistic parameters of the problem is also key, as every system has its tradeoffs. Finally, determining whether the data applies to this problem or not.

Important considerations include:

Which distributions and values apply to what events and elements
Distributions can be based on observed data, information in a database, or assumptions depending on the desired accuracy.

3. Building the Model

Typical steps in building a DES model include:

Creating the flow and its respective distributions in a DES
Showing what the process produces as a whole
Linking each event to its respective element, distributions, values, and code within the program.

4. History Matching

It’s important to note that if you are not able to history match the model with its realistic counterpart, then its highly likely that you have misunderstood something or an important assumption that you previously made was incorrect. This is why steps 1 and 2 are the most important, because if there’s an incorrect perception of the entire problem, or if the data is wrong, then it can lead to issues within the validity of the model. In summary, if you fail to history match the model, then return to steps 1 or 2 as there is likely a mistake.

Important considerations include:

Verifying that the model produces its real-life counterpart
Ensuring values and distributions used are realistic and make sense
Ensuring the final product represents what is made/desired in reality.

5. Running the Experiment

The final step is running the experiment, considerations include:

Utilising scenarios and replications to create accurate and realistically distributed results
Changing nodes to see the effects on results
Learning how to achieve efficiency through minimalistic, realistic, and cost-efficient changes.

DES Software Tools

There are a various DES software tools available. Some of these tools include but are not limited to the following:

AnyLogic – A large, general-purpose, multi-method modelling tool. Combines agent-based system dynamics, and discrete event modelling.
Rockwell Automation – also known as Arena, now a part of Rockwell, is a large, general-purpose, multi-method simuilation modelling tool.
Simul8 – A commercial simulation software, especially popular in Australia.
Simcad Pro – A simulation software that includes a virtual reality and physics engine, and allows for model changes while the simulation is running.
Enterprise Dynamics – a platform that allows you to create a digital twin with applications in manufacturing, material handling, and logistics.
JaamSim – Open source simulation software that has 2D/3D graphics and a drag-and-drop interface.

It’s important to note that each of these tools have their own uses in terms of the scale of the projects. For example, if a project has a smaller scale and less of a budget, “Simul8” may be an appropriate option due to its lightweight nature, or open source “JaamSim” may be appropriate due to it being free and simple to use. For larger projects with bigger budgets and high complexity/compute requirements, “AnyLogic” and “Rockwell Automation” may be a better fit.

Some of the tools mentioned above have free and “pro” versions. For example, the free version of “JaamSim” provides all the basic tools used to build a model, but “JaamSim Pro” provides faster execution speed, more flexible data interoperability, and access to web models where users can access a model and run it through their own parameters.

Finally, the size of each of these tools is what makes discrete event simulation so interesting. The flexibility that can be seen within these tools shows how there are so many opportunities to utilise DES, and that there is always a lot of value to be held within models despite how big or small they are.

Example DES Models

Below are some examples of hypothetical “real world” applications of discrete event simulation models in two separate industries/use cases.

Example 1: Basic DES Model – Airport Security

In this example let us imagine that the manager of an Airport is looking to improve the efficiency of its security process. A basic model below could look like the below.

Basic Airport Security DES Model

A summary of the above:

The entity is presented as a “Flight_Passenger“, and the entity generator represents the passenger arriving at the airport via the entity generator labeled “Airport_Arrival“.
The passenger waits in the security queue, “Security_Queue”, until they can enter the server labeled “Security“, which represents the passenger going through security.
After making it through security, the passenger then goes to board their flight which is represented by the entity sink labeled “Board_Flight”, marking the end of the process.

Example 2: Basic DES Model – Gold Beneficiation

In this example we have a Gold Mine Manager who is seeking to improve the process of finding and preparing gold for the market. A basic model below could look like the below.

Basic Gold Beneficiation DES Model

A summary of the above:

The entity is presented as “Gold_Ore”, and this ore is mined/created via the entity generator labeled “Gold_Mine”.
After being mined, the gold ore waits in the queue labeled “Beneficiation_Queue” until it can enter the server labeled “Beneficiation”.
After the gold ore goes through the beneficiation process, it is shipped off to the gold market which is represented by the entity sink labeled “Gold_Market”.

Notice how this model relates to a much more common and relatable scenario than the previous. This relates back to that point that DES can be applied to any process, whether these processes involve niche manufacturing or common day-to-day tasks. As for both models, they can each seek efficiency to a certain degree by applying pre-determined values to each part of the model. However, to get realistic data, we will need to create a stochastic model with many more process-flow parts.

Example 3: Basic DES Model – Gold Beneficiation

The basic Gold Beneficiation DES model can be useful to an extent, but its simplicity can serve as a major obstacle towards gathering realistic data. Some unrealistic implications of the model include:

The entire gold beneficiation process is represented as a single server. In reality however, the beneficiation process is composed of several other steps including crushing, grinding, and extracting the ore.
There is no transportation time between each part, even though in reality, the ore takes at least a little bit of time to travel from event to event.
Each event has a set time value that it takes to complete. In reality, nearly no process can repeat itself while taking the same amount of time as the last run-through.
There is always a chance that some of the ore may go to waste, and the model above has no way of identifying which ore is wasteful.

In order to compensate for these issues, we can:

Add more servers and queues
Create entity conveyor belts which transport received entities on a specific path at a certain speed
Add normal distributions to each server that each have their own mean, maximum, minimum, and standard deviation value
Add a discrete distribution connected to a branch event. The branch, indicating the success rate of the ore, chooses whether the ore is wasted or is shipped to the market via the discrete distribution, which has set probabilities to whether the ore is wasted or not.

Putting this all together now, a more complex version of this model may look like the below:

Complex Gold Beneficiation DES Model

A summary of the above:

The previous server in the Basic Gold Beneficiation model labelled “Beneficiation” has been divided into three separate servers labelled “Crushing_Process”, “Grinding_Process”, and “Extraction_Process”.
Each of these servers are linked to their respective distributions above each of them. Additionally, various entity conveyors including “Ore_Transportation”, “Conveyor_Belt” and “Shipping_to_Market” have been added as well as a new entity sink, branch, and discrete distribution.
The “Success_rate” chooses whether the ore is shipped to the market or goes to the “Wasted_Gold” entity sink based on the value chosen by the “Success_Rate_Distribution”.
This success rate process that we used represents the yield of gold and how all gold is not usually perfectly recovered when it goes through this process.
Additionally, we can add graphical components to our model so we can understand what is happening on a more visual and analytical basis.

Complex Gold Beneficiation DES Graphical Model with Statistics

In the above graphical model, a statistics section containing average queue wait times and counters has been added. Additionally, a graph of the combined average queue wait length is created and bar gauges next to each server indicating their progress completed on their respective entities being worked on.

Upon running the simulation, we can see the following results.

Complex Gold Beneficiation DES Graphical Model with Statistics Running

Now that the model is more realistic and stochastic (despite the demo values of seconds and minutes being used above), the Mine Manager can utilise the data presented above and the data in the downloaded Excel report to go back and tweak one of the nodes in a trial-and-error fashion in order to determine which changes to a node produce the most efficient and optimised outcome.

Even this “complex” example only scratches the surface. A real life DES model for gold processing would be closely linked to the process flow of that specific gold mine taking into consideration the specific processing and equipment used at that site, such as whether it employs carbon in leach (CIL) or carbon in pulp (CIP) processes, the various types/stages of grinding, the type of mill, whether gravity screening is employed, the amount/quality of sensors, reliability of data in the historian, and so on.

In Summary

Discrete Event Simulation is an incredibly useful and flexible technique that can be used in many organisations. Whether you are simply collecting a couple data points from a simple model, building a model with hundreds of nodes, or even setting your own parameters in a pre-built model, DES will provide the flexibility within its tools to allow you to do as you please.

DES modelling can help your organisation to improve decision making, identify bottlenecks, reduces costs and wastage, optimise resources, minimise downtime, predict system performance under various conditions, and conduct risk-free experimentation before costly investment.

Despite its versatility, DES still isn’t a technique that can do everything efficiently. Due to its events being clinical, discrete occurrences rather than places where the variables of the system can change, it’s not great at modelling variable changes within each event or effects on a system as a whole, such as modelling fluids, kinematics, and traffic. Other modelling techniques that can be used for this can include continuous modelling or agent-based modelling.

Hopefully, this article was an informative introduction to DES, its applications, and how it may apply to your organisation. Please do not hesitate to contact the team if you would like to know more about discrete event simulation, or the implementation of other simulation and optimisation techniques.

Acknowledgements

A special thank you goes to our New York based 4CDA intern Nick Vowinkel, who helped put this article together during his internship.

Predictive maintenance (PdM) is maintenance that monitors the performance and condition of equipment during normal operation to reduce the likelihood of failures
www.reliableplant.com

There are generally three different types of maintenance:

Reactive maintenance is the process of repairing assets to standard operating conditions after poor performance or breakdown is observed.
Preventive maintenance usually occurs on some type of schedule. Preventive maintenance is designed to keep machinery and parts in good condition but does not take the state or process into account.
Predictive maintenance occurs as needed, drawing on real-time collection and analysis of machine operation data to identify issues before they can interrupt production. With predictive maintenance, repairs happen during machine operation and address an actual problem. If a shutdown is required, it will be shorter and more targeted.

While the planned downtime in preventive maintenance may cause a decrease in overall capacity and/or availability, it is favoured over the unplanned downtime of reactive maintenance, where costs and duration may be unknown until the problem is diagnosed and addressed. It is also likely to interrupt other scheduling and planning which will cause further downstream time losses.

The aim of this post is to demystify some technical aspects of predictive maintenance through a Python solution to a real-world problem: turbofan engine degradation.

Problem Statement

Our task is to determine whether a Machine Learning model could be used to perform Predictive Maintenance on turbofan engines. For the purposes of this tutorial, we will assume that the following information has been ascertained through consultation with the company operating the turbofans:

The maintenance schedule of the turbofans is flexible. There would be no use carrying out this analysis if the schedule cannot be changed.
The analysis would generate long-term value for the operating company.

Given that the above points are true, the problem now lies in the analysis. We will use sensor data to predict the Remaining Useful Life (RUL) of turbofan engines. This RUL prediction can then be used to facilitate predictive maintenance.

Dataset Description

The data used in this notebook is based off a subset of the popular NASA Turbofan Engine Degradation Simulation Data Set. It contains data for 100 different turbofans.

Engine degradation simulation was carried out using C-MAPSS. Four different sets were simulated (using set 3 here) under different combinations of operational conditions and fault modes. Records several sensor channels to characterize fault evolution. The data set was provided by the Prognostics CoE at NASA Ames.

https://ti.arc.nasa.gov/tech/dash/groups/pcoe/prognostic-data-repository

Implementation

The first step is to import the libraries:

import pandas as pd
import numpy as np
import scipy as sp
import scipy.signal as ss
import matplotlib.pyplot as plt
import seaborn as sns
import optuna
from sklearn.model_selection import cross_val_score
from sklearn.metrics import mean_squared_error, r2_score
from sklearn.linear_model import LinearRegression
from sklearn.ensemble import RandomForestRegressor
import xgboost
import catboost
plt.rcParams['figure.figsize'] = 20, 20

Next, we import the data into a Pandas data frame. The data are in the form of text files, which can be obtained from the above link. There is a data frame for the training set, the test set and the validation testing data:

index_names = ['unit_number', 'time_cycles']
setting_names = ['setting_1', 'setting_2', 'setting_3']
sensor_names = ['s_{}'.format(i+1) for i in range(0,21)]
col_names = index_names + setting_names + sensor_names
directory = r'C:\PATH\TO\YOUR\DATA\FOLDER'
train_df = pd.read_csv(directory+r'\train_FD003.txt',
                     sep='\s+',
                     header=None,
                     index_col=False,
                     names=col_names)
train = train_df.copy()
test_df = pd.read_csv(directory+r'\test_FD003.txt',
                     sep='\s+',
                     header=None,
                     index_col=False,
                     names=col_names)
test = test_df.copy()
y_test = pd.read_csv(directory+r'\RUL_FD003.txt',
                      sep='\s+',
                      header=None,
                      index_col=False,
                      names=['RUL'])

At this stage, we note that we will be using only a training and a test set. In practice, a validation set should also be used to ensure the model works well on multiple test sets.

Now we can perform some basic diagnostic analysis of the data to confirm that it has been imported correctly, and to get an idea of what the entire data set looks like through descriptive statistics:

train.shape

(24720, 26)

train.head()

train.loc[:,'s_1':].describe().transpose()

Table showing the trained data for location

We can see that there is a row for each time cycle for each unit, and that there is a column for each sensor reading.

We now define a function that adds a column “RUL” to a given data frame based on a unit’s maximum cycle number and the time cycle it is in currently. We use this function to modify the training set:

def add_remaining_useful_life(df):
    grouped_by_unit = df.groupby(by='unit_number')
    max_cycle = grouped_by_unit['time_cycles'].max()
    result_frame = df.merge(max_cycle.to_frame(name='max_cycle'),
                            left_on='unit_number',
                            right_index=True
    # Calculate remaining useful life for each row
    remaining_useful_life = result_frame["max_cycle"] - result_frame['time_cycles']
    result_frame["RUL"] = remaining_useful_life
    # drop max_cycle as it's no longer needed
    result_frame = result_frame.drop("max_cycle", axis=1)
    return result_frame

train = add_remaining_useful_life(train)

We then find the maximum RUL for each unit and visualise their frequencies using a histogram:

max_ruls = train.groupby('unit_number').max().reset_index()
max_ruls.head()

The distribution of RULs looks log-normal with most of the max RUL data in the 150-250 range. One insight we can gather from this is that, if there were many more simulations, we could be confident that the RUL would almost never be less than 150 cycles. This information could be used to clip predictions at a particular maximum which may make the algorithm more reliable/accurate in production.

Visualising sensor signals

Now we investigate what the sensor signals look like, which will help determine “good” and “bad” sensors (i.e. sensors that contain a lot of information vs ones that don’t). We use a function to plot the sensor signals for every 10th turbofan. Plots for sensors 1, 2, 6 and 7 are displayed below as examples:

Brief sensor analysis

Looking at all visualisations, it seems as though sensors 1 (included above), 5, 16, 18 and 19 have very little to no information to help predict the RUL. These will be removed before prediction below to help the speed and generalisation of the algorithm. Further testing may reveal that sensors with patterns like sensor 6 (above) should also be removed from the features.

Next, we prepare the training and test sets:

drop_sensors = ['s_1','s_5','s_16','s_18','s_19']
drop_labels = index_names+setting_names+drop_sensors
remaining_sensors = ['s_2', 's_3', 's_4', 's_6', 's_7', 's_8', 's_9', 's_10',
        's_11', 's_12', 's_13', 's_14', 's_15', 's_17', 's_20', 's_21']
X_train = train.drop(drop_labels, axis=1)
y_train = X_train.pop('RUL')
X_test = test.groupby('unit_number').last().reset_index().drop(drop_labels, axis=1)

X_train and X_test contain only the sensor readings, whilst y_train and y_test contain the RUL values.

Now, we define a function that evaluates the total error in our predictions. We have chosen the root mean square error (RMSE) as our error metric, although there may be other metrics that would work better:

def evaluate(y_true, y_hat, label='test'):
    mse = mean_squared_error(y_true, y_hat)
    rmse = np.sqrt(mse)
    variance = r2_score(y_true, y_hat)
    print('{} set RMSE:{}, R2:{}'.format(label, rmse, variance))

Training the algorithm

This section of the tutorial will cover the building and implementation of a Random Forest Regression model. It is good to test multiple different types of models in practice – as such, XGBoost and CatBoost models were also built and tested, but that will not be covered here.

We note here that, in most model types (e.g. Linear Regression, SVM), feature scaling is required to normalise the data for training. All of the models built as part of this process are forms of Decision Tree regressors, which do not require feature scaling.

Building and training the model is surprisingly straightforward thanks to Scikit-learn’s powerful Random Forest module:

rf = RandomForestRegressor(max_features="sqrt", random_state=42)
rf.fit(X_train, y_train)

# predict and evaluate
y_hat_train = rf.predict(X_train)
evaluate(y_train, y_hat_train, 'train')

y_hat_test = rf.predict(X_test)
evaluate(y_test, y_hat_test)

train set RMSE:21.025240351169202, R2:0.9547545019533699
test set RMSE:46.358798830427006, R2:-0.254167389706895

We will now interrogate our results through a visualisation to confirm whether they are reasonable. It is always important to visualise the predictions against the actual values, as a single metric does not always tell the whole story. For example, most predictions may be good but there could be a large outlier which would render the model unacceptable to put into production.

Our algorithm appears to overestimate in its predictions. We will try to remedy this by clipping the RUL as mentioned previously. Applying RUL clipping makes the maximum RUL value 115, which helps the predictions as we will see below. Intuitively, this makes sense: the sensor values with a 200 RUL are similar to those with a 115 RUL, so the algorithm will not be able to distinguish between these well. Also, the maximum RUL in the test set is 115, which is around the point where the sensor readings start to change significantly (referring to the line graphs above).

drop_sensors = ['s_1','s_5','s_16','s_18','s_19']
drop_labels = index_names+setting_names+drop_sensors
remaining_sensors = ['s_2', 's_3', 's_4', 's_6', 's_7', 's_8', 's_9', 's_10',
        's_11', 's_12', 's_13', 's_14', 's_15', 's_17', 's_20', 's_21']
X_train = train.drop(drop_labels, axis=1)
y_train = X_train.pop('RUL')
y_train_clipped = y_train.clip(upper=115)  # apply RUL clipping
X_test = test.groupby('unit_number').last().reset_index().drop(drop_labels, axis=1)

Now, we retrain the model:

rf = RandomForestRegressor(max_features="sqrt", random_state=42)
rf.fit(X_train, y_train_clipped)

# predict and evaluate
y_hat_train = rf.predict(X_train)
evaluate(y_train_clipped, y_hat_train, 'train')

y_hat_test = rf.predict(X_test)
evaluate(y_test, y_hat_test)

train set RMSE:5.158896101752112, R2:0.9802797863716584
test set RMSE:20.225672522811198, R2:0.761275442379237

After clipping the RUL, we see a decrease in the RMSE by more than half, indicating that our algorithm now makes better predictions. This is visualised below:

Another step we can take to improve the predictive power of our algorithm is signal smoothing. We can see from the sensor reading plots that the signals are “noisy” – i.e. lots of short-term variance. To fix this, we smooth the signals using Scipy’s Savitsky-Golay filter:

def apply_scipy_filter(df, scipy_filter):
    for unit in df['unit_number'].unique():
        for sensor in df.loc[:,'s_1':]:
            if sensor != 'RUL':
                df.loc[df['unit_number']==unit,sensor] = scipy_filter(df.loc[df['unit_number']==unit,sensor],
                window_length=19, polyorder=1, deriv=0, mode='interp')
    return df

We fit the filter three times, then visualise the results:

train = apply_scipy_filter(train, ss.savgol_filter)
train = apply_scipy_filter(train, ss.savgol_filter)
train = apply_scipy_filter(train, ss.savgol_filter)

test = apply_scipy_filter(test, ss.savgol_filter)
test = apply_scipy_filter(test, ss.savgol_filter)
test = apply_scipy_filter(test, ss.savgol_filter)

The plots are now much smoother.

The model may now be fit to the transformed data:

drop_sensors = ['s_1','s_5','s_16','s_18','s_19']
drop_labels = index_names+setting_names+drop_sensors
remaining_sensors = ['s_2', 's_3', 's_4', 's_6', 's_7', 's_8', 's_9', 's_10',
        's_11', 's_12', 's_13', 's_14', 's_15', 's_17', 's_20', 's_21']

X_train = train.drop(drop_labels, axis=1)
y_train = X_train.pop('RUL')
y_train_clipped = y_train.clip(upper=125)  # apply RUL clipping

# Since the true RUL values for the test set are only provided for the last time cycle of
# each engine, the test set is subsetted to represent the same
X_test = test.groupby('unit_number').last().reset_index().drop(drop_labels, axis=1)

train set RMSE:1.65129502601594, R2:0.998347906044556
test set RMSE:18.805190001699, R2:0.7936299799906349

The RMSE on the training set has been reduced substantially again, but it did not decrease by much on the test set. This suggests that perhaps our model is overfitted, which means the model is very accurate on the training set but inaccurate on the test set.

An additional step we took (not covered in this tutorial) was to optimise the model, given our training and test data, using Bayesian Optimisation. We then fed the parameters obtained through this optimisation into the Random Forest model:

rf = RandomForestRegressor(n_estimators = 32,
                            max_depth = 22,
                            min_samples_split = 6,
                            max_features = 1,
                            min_samples_leaf = 8,
                            random_state = 42)
rf.fit(X_train, y_train_clipped)

y_hat_train = rf.predict(X_train)
evaluate(y_train_clipped, y_hat_train, 'train')

y_hat_test = rf.predict(X_test)
evaluate(y_test, y_hat_test)

train set RMSE:8.092176262356801, R2:0.9603250795515506
test set RMSE:19.824936715182147, R2:0.7706415346514391

This accuracy looks worse than before, but it is more general (not much worse performance on the test set than on the training set). It is important to remember that, with these parameters, the algorithm is performant on multiple different training sets. If the Bayesian Optimisation algorithm had been allowed to run for longer, or if more arguments were allowed to be varied, even better accuracy could be achieved as well.

Potential (further) improvements

Many more improvements and adjustments are possible in models like this. Some of them are:

Adding features. It would be possible to generate new features from already-existing features, and perhaps find extra data to add to the data set. Some examples are:
- Lagged features, i.e. columns for time t-1, t-2 etc.
- Derivatives of features, i.e. average rate of change over a lagged period
- Geographic data e.g. location, humidity, ambient temp
Detailed feature analysis. In practice, it is good to have an expert analyse the data set and determine which features to use in the model. It is also possible to employ feature selection methods to avoid problems such as the algorithm fitting to noisy data. Further statistical analysis may also be used to find features particularly prone to under/overfitting.
Voting/stacking regressors. Some implementations have multiple regression models working in tandem (known as ensemble learning), which reduces variance in predictions and may increase accuracy.
Using a CNN to capture more steps. CNN is used primarily in Computer Vision problems, but they are also useful for capturing data from multiple time steps simultaneously.
Use a different loss function. In problems like this, overestimating the RUL is potentially far more dangerous and costly than underestimating it. So, it may be prudent to choose a loss function that penalises overestimates more than it does for underestimates.

That’s the end of the tutorial – well done for reading through to the end! If you think that you or your business could benefit from a predictive Machine Learning implementation like this, please contact the 4CDA team. We would love to help!

Acknowledgements

A special thank you goes to 4CDA alumni James White for creating the initial code base used in the tutorial section.

Please find a the link to the full codebase for this example.

In this tutorial, we will use artificial neural networks (ANN), implemented via the popular open source library TensorFlow, to predict the outcome of games of Australian Rules Football (AFL). We will use historical data to train the model and then use those parameters in the predictive model. The process will include an end-to-end approach including data acquisition, cleansing and organising, before the application of the ANN and verification of results.

This tutorial assumes some prior basic knowledge in Python.

What is an artificial neural network (ANN)?

The definition according to Wikipedia for an artificial neural network is:

ANNs, usually simply called neural networks (NNs), are computing systems vaguely inspired by the biological neural networks that constitute animal brains.
– Wikipedia definition

ANNs can solve new problems by analysing previous examples of similar problems. In this example, we have chosen ANNs to demonstrate their power in classification and regression problems. Similar results could be gained using linear or logistic regression (see our introductory post on linear regression), random forest classification, etc..

Project Structure

The structure we’ll follow to create an AFL predictor involves six steps:

Find/create your dataset
Clean the data
Organise the data
Set up the Neural Network
Feed the data into the Neural Network
Verify results

This structure may be generalised to solve many different problems, so I encourage readers to use this article as an example of how to implement an ANN in Python and then use the method to solve an alternative problem. Furthermore, I would suggest choosing a project that you’re passionate and interested in – I found that this motivated me to continue working and tinkering even when I wasn’t sure what to do next.

The final code used in this tutorial is available in this GitHub repository.

Step 1: find/create your dataset

Before we can do anything Data Science-related, we need data. I found a Kaggle dataset containing AFL player data from (almost) all matches between 2012 and 2018. It has a manageable 63,712 rows and 37 columns.

We need to import it into Jupyter Notebook, the Python workbook we’ll be using, before we can see or do anything with it. Let’s start by importing some essential libraries and loading our data:

import tensorflow as tf
import numpy as np
import pandas as pd

TensorFlow is an open source machine learning platform from Google that contains the Neural Networks we will use in our predictor, Numpy is used extensively for matrix and array operations, and Pandas is used to put the data into a data frame just to make our lives easier.

The next part of this step is to load the data using Pandas:

afl = pd.read_csv('C:/path/to/your/csv/file.csv')

This will place the data from your CSV file into a Pandas data frame. Data frames are great for working with large data sets, as they allow for easy row/column operations and sub-setting amongst many other things.

Now that the data is loaded, we can see the column names using the .info() method:

afl.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 63712 entries, 0 to 63711
Data columns (total 37 columns):
 #   Column                  Non-Null Count  Dtype
---  ------                  --------------  -----
 0   Team                    63712 non-null  object
 1   Player                  63712 non-null  object
 2   D.O.B                   63712 non-null  object
 3   Height                  63712 non-null  int64
 4   Weight                  63712 non-null  int64
 5   Position                63712 non-null  object
 6   Season                  63712 non-null  int64
 7   Round                   63712 non-null  object
 8   Date                    63624 non-null  object
 9   Score                   63624 non-null  float64
 10  Margin                  63624 non-null  float64
 11  WinLoss                 63624 non-null  object
 12  Opposition              63624 non-null  object
 13  Venue                   63624 non-null  object
 14  Disposals               63712 non-null  int64
 15  Kicks                   63712 non-null  int64
 16  Marks                   63712 non-null  int64
 17  Handballs               63712 non-null  int64
 18  Goals                   63712 non-null  int64
 19  Behinds                 63712 non-null  int64
 20  Hitouts                 63712 non-null  int64
 21  Tackles                 63712 non-null  int64
 22  Rebound50s              63712 non-null  int64
 23  Inside50s               63712 non-null  int64
 24  Clearances              63712 non-null  int64
 25  Clangers                63712 non-null  int64
 26  FreesFor                63712 non-null  int64
 27  FreesAgainst            63712 non-null  int64
 28  BrownlowVotes           63712 non-null  int64
 29  ContendedPossessions    63712 non-null  int64
 30  UncontendedPossessions  63712 non-null  int64
 31  ContestedMarks          63712 non-null  int64
 32  MarksInside50           63712 non-null  int64
 33  OnePercenters           63712 non-null  int64
 34  Bounces                 63712 non-null  int64
 35  GoalAssists             63712 non-null  int64
 36  PercentPlayed           63712 non-null  int64
dtypes: float64(2), int64(26), object(9)
memory usage: 18.0+ MB

Step 2: clean the data

An essential component of any data-centric project is to clean your data set. Luckily, this one did not require too much cleaning – the only necessary change was to get rid of any rows containing NA entries – but I chose to demonstrate some data handling capabilities of the Pandas library by also adding an “Age” column, which may also be relevant in what we are trying to predict:

import datetime

afl = afl.dropna(axis=0)
afl = afl[afl['WinLoss'] != 'D']
afl['D.O.B'] = pd.to_datetime(afl['D.O.B'])
afl['Date'] = pd.to_datetime(afl['Date'])
age_in_days = (afl['Date']-afl['D.O.B'])
age_in_years = age_in_days.dt.days/365.2425
afl['Age'] = age_in_years

The first line deletes any rows containing NA entries. The second line deletes rows where the match result was a draw – I chose to do this because draws are so infrequent in the AFL that it’s pretty much pointless to try predicting them. The rest of this code block finds each player’s age in years at the time they played each game and adds a column for this data.

Step 3: organise the data

This is arguably the most critical component of the project. We need to decide which data to use, and how to feed it into the ANN. I considered many different approaches to this step, but the structure I settled on is described below:

This may seem complicated, but the code snippets below should help explain what’s going on.

Firstly, the data is grouped by match, a list of players is generated for each of these matches, the team lists are shuffled and the result is converted to a Numpy array:

import random
grouped_data = afl.groupby(['Team','Season','Round','WinLoss','Opposition','Venue'])['Player'].apply(list).reset_index()
players = grouped_data['Player'].to_numpy()
for item in players:
    random.shuffle(item)
grouped_data['Player'] = players
grouped_data = grouped_data.to_numpy()

We shuffle the team lists to prevent bias towards some players in the neural network. For example, Gary Ablett is one of the best players of all time, so his average stats would probably be in the top 5% of players across the league. His name would be first on almost every one of his team lists, meaning the neural network may assign weights differently to his stats columns than other player columns. Shuffling the team lists ensures we don’t encounter this issue.

We can look at the first entry to see what each array element looks like:

grouped_data[0]

array(['Adelaide', 2012, 'PF', 'L', 'Hawthorn', 'M.C.G.',
       list(['Thompson, Scott', 'Smith, Brodie', 'Porplyzia, Jason', 'Sloane, Rory', 'Reilly, Brent', 'Rutten, Ben', 'Douglas, Richard', 'van Berlo, Nathan', 'Tippett, Kurt', 'Callinan, Ian', 'Henderson, Ricky', 'Thompson, Luke', 'Johncock, Graham', 'Doughty, Michael', 'Jacobs, Sam', 'Otten, Andy', 'Wright, Matthew', 'Walker, Taylor', 'Mackay, David', 'Petrenko, Jared', 'Dangerfield, Patrick', 'Vince, Bernie'])],
      dtype=object)

We can now see that each array element are themselves arrays containing the team, season, round, result, opposing team, ground and list of players on the team.

The next part of this step is to convert non-numerical information into numerical data so we can feed it into the ANN. The best way of doing this is by using column encoding – we won’t go into too much detail in this article, but there are plenty of tutorials online covering this topic (here is an example). So, we convert the match result, opposing team and ground columns into encoded columns, which requires the OneHotEncoder and ColumnTransformer modules out of Scikit-learn.

from sklearn.preprocessing import OneHotEncoder
from sklearn.compose import ColumnTransformer
ct1 = ColumnTransformer([('encoder',OneHotEncoder(),[3,4,5])], remainder='passthrough',sparse_threshold=0)
grouped_data = ct1.fit_transform(grouped_data)

That’s all there is to it – let’s take another look at the first array element to see what each entry looks like after the transformation:

grouped_data[0]

array([1.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0,
       0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0,
       0.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0,
       0.0, 0.0, 0.0, 'Adelaide', 2012, 'PF',
       list(['Thompson, Scott', 'Smith, Brodie', 'Porplyzia, Jason', 'Sloane, Rory', 'Reilly, Brent', 'Rutten, Ben', 'Douglas, Richard', 'van Berlo, Nathan', 'Tippett, Kurt', 'Callinan, Ian', 'Henderson, Ricky', 'Thompson, Luke', 'Johncock, Graham', 'Doughty, Michael', 'Jacobs, Sam', 'Otten, Andy', 'Wright, Matthew', 'Walker, Taylor', 'Mackay, David', 'Petrenko, Jared', 'Dangerfield, Patrick', 'Vince, Bernie'])],
      dtype=object)

Note how the encoded columns were pushed to the front of the array. Now, we need a training set and a test set. The training set will be fed into the ANN and used to develop the model, and the test set will allow us to measure the performance of the model. Usually, I would recommend choosing training and test sets using train_test_split out of Scikit-learn, however I went for a different approach in this project: I chose the data from the 2012-2017 season as my training set and data from the 2018 season as my test set. Firstly, split grouped data:

training = [x for x in grouped_data if x[43]<2018]
test = [x for x in grouped_data if x[43]==2018]

So “training” and “test” are just subsets of grouped_data.

Next, we find an encoded column corresponding to whether the team won or lost and use this as our dependent variable (as this is what we’re trying to predict):

y_train = np.array([x[0] for x in training])
y_train = y_train.reshape(-1,1)
y_test = np.array([x[0] for x in test])
y_test = y_test.reshape(-1,1)

The result is a two-dimensional array with 1’s corresponding to a win and 0’s to a loss:

print(y_train)

[[1.]
 [1.]
 [0.]
 ...
 [0.]
 [1.]
 [1.]]

Next, we find average stats for each player for the respective training and test sets and shuffle the resulting data to prevent bias:

# player_stats is each players' average stats between 2012 and 2017.
player_stats = afl[afl['Season'] < 2018].groupby('Player',sort=False).mean()
player_stats = player_stats.reset_index()
player_stats = player_stats.drop(['Season','Score','Margin'],axis=1)
player_stats = player_stats.sample(frac=1).reset_index(drop=True)
player_stats = player_stats.to_numpy()

# Player average stats for 2018
player_stats_2018 = afl[afl['Season'] == 2018].groupby('Player',sort=False).mean()
player_stats_2018 = player_stats_2018.reset_index()
player_stats_2018 = player_stats_2018.drop(['Season','Score','Margin'],axis=1)
player_stats_2018 = player_stats_2018.sample(frac=1).reset_index(drop=True)
player_stats_2018 = player_stats_2018.to_numpy()

We choose to ignore the season, score and margin columns. I guessed that the “season” column would not improve the prediction, which was later verified through testing. The “score” and “margin” columns are direct indicators of the match result, so if they were included in the analysis the neural network would achieve an accuracy of close to 100% on the training set but would perform very poorly on the test set.

We can see what each entry of these player statistic arrays looks like:

player_stats[0]

array(['Goodes, Brett', 183.0, 89.0, 17.045454545454547,
       10.772727272727273, 4.045454545454546, 6.2727272727272725,
       0.18181818181818182, 0.09090909090909091, 0.13636363636363635,
       2.6363636363636362, 2.8181818181818183, 2.272727272727273,
       1.3636363636363635, 2.772727272727273, 0.9545454545454546, 1.0,
       0.09090909090909091, 6.2727272727272725, 9.909090909090908,
       0.22727272727272727, 0.0, 1.8636363636363635, 0.5,
       0.18181818181818182, 78.5, 29.979335024613157], dtype=object)

Now we want to combine our encoded venue and opposition data with our average player data. Firstly, we get our encoded data from the “training” and “test” arrays we created previously:

opp_teams_train = np.array([x[2:42] for x in training])
opp_teams_test = np.array([x[2:42] for x in test])

The following “for” loop then reads the list of players on a team for each match, finds each player’s average stats in player_stats and adds them to an array, i.e. each row of X_train contains every player statistic for each game. The same thing is done for player_stats_2018, with the results stored in X_test:

X_train = [0]*len(training)
for i in range(0,len(training)):
    player_list = []
    j = 0
    for j in range(0,len(player_stats)):
        if player_stats[j][0] in training[i][-1]:
            player_list.append(player_stats[j][1:])
    X_train[i] = player_list

X_train = [np.concatenate(x) for x in X_train]

X_test = [0]*len(test)
for i in range(0,len(test)):
    player_list = []
    j = 0
    for j in range(0,len(player_stats_2018)):
        if player_stats_2018[j][0] in test[i][-1]:
            player_list.append(player_stats_2018[j][1:])
    X_test[i] = player_list

X_test = [np.concatenate(x) for x in X_test]

print(len(X_train[0]))

The final part of this data engineering step involves something called feature scaling. Again, we won’t explore this concept in-depth, but there’s a lot of learning material out there if you’re curious (this Towards Data Science article, for example). Essentially, feature scaling improves the convergence rate of the ANN we’re about to create. We only need to scale our non-binary data, so we can leave our dependent variable arrays and opposition/venue data alone.

For this project I just used StandardScaler class out of the Scikit-learn pre-processing module:

from sklearn.preprocessing import StandardScaler
sc = StandardScaler()
scaled_X_train = sc.fit_transform(X_train)
scaled_X_test = sc.fit_transform(X_test)

After feature scaling, we just combine our player and opposition/venue data, which gives us our matrix of features:

scaled_X_train = np.hstack((scaled_X_train, opp_teams_train))
scaled_X_train = np.asarray(scaled_X_train).astype(np.float32)

scaled_X_test = np.hstack((scaled_X_test, opp_teams_test))
scaled_X_test = np.asarray(scaled_X_test).astype(np.float32)

Run the below print statement to check that the data combined successfully:

print(scaled_X_train[0])

The reason we now have negative values is because of the feature scaling.

Step 4: building the ANN

This part of the project is surprisingly simple, as all the heavy lifting is done by the TensorFlow library. We’ll use a network with two hidden layers, each with six neurons and both utilising the rectified linear unit (ReLU) activation function. ReLU is one of the most diverse and adaptable activation functions, which is why we’re using it. We’re opting for this network layout for simplicity, but feel free to experiment by adding more layers and/or neurons! For the output layer, we will use a sigmoid activation function as we are looking for a probabilistic output. For more reading on how a basic neural network functions, there is plenty of online material.

In TensorFlow (tf), the layers are added individually using the .add() method:

# Build the ANN
ann = tf.keras.models.Sequential()
# First hidden layer
ann.add(tf.keras.layers.Dense(units = 6, activation = 'relu'))
# Second hidden layer
ann.add(tf.keras.layers.Dense(units = 6, activation = 'relu'))
# Output layer
ann.add(tf.keras.layers.Dense(units = 1, activation = 'sigmoid'))

We then compile the ANN using the Adam optimiser and the binary cross-entropy loss function. Adam is selected again for its adaptability to a range of problems, whilst the loss function is chosen due to its effectiveness for binary outputs.

ann.compile(optimizer = 'adam', loss = 'binary_crossentropy', metrics = ['accuracy'])

Step 5: feed the data into the ANN

After compiling, the ANN is ready to be trained on the data. We will use a for loop to fit our model, as we would like to analyse the results later. For each loop, we re-fit the model and evaluate the loss and accuracy on both the training and test sets:

steps = []
accs = []
test_accs = []
for i in range(0, 25):
    ann.fit(scaled_X_train, y_train, epochs = 1)
    [loss, accuracy] = ann.evaluate(scaled_X_train, y_train)
    [loss_t, accuracy_t] = ann.evaluate(scaled_X_test, y_test)
    accs.append(accuracy), steps.append(i), test_accs.append(accuracy_t)

Step 6: verify results

While the training loop is running, we can see the training progress being printed, including the accuracy and loss. These are the last few lines of output:

78/78 [==============================] - 0s 628us/step - loss: 0.3769 - accuracy: 0.7887
78/78 [==============================] - 0s 462us/step - loss: 0.3508 - accuracy: 0.7952
13/13 [==============================] - 0s 539us/step - loss: 0.8428 - accuracy: 0.6176

On the bottom line, we can see the final accuracy on the test set of 61.8%. So, after all that work, we only get an accuracy of 61.8%… hardly seems worth the effort, right?

We can plot training set accuracy (blue) and test accuracy (orange) over time steps to investigate how accuracy fluctuates over training steps (epochs):

import matplotlib.pyplot as plt
plt.plot(steps, accs)
plt.plot(steps, test_accs)

[<matplotlib.lines.Line2D at 0x1f797461688>]

We can see that accuracy on the test set increases steadily over the first five epochs, then remains relatively flat while the training accuracy climbs gradually. Ideally, we would like to see a gradual increase in the test set accuracy as well.

Potential improvements

There are several improvements that can be made to this basic model:

Adjusting hyperparameters using a validation set. Good neural networks use validation sets to investigate the effects of adjusting their hyperparameters, which in this case include the number of layers, the learning rate, the type of activation function and the batch size. This article sums these up in an easy-to-understand way.
Using better data. The data set I found online was relatively simplistic in that some vital statistics weren’t included. For example, it is well known that “points from clearances” and “points from turnovers” are key indicators of successful teams. If such statistics were included in the data, the neural network may have performed better.
Changing the structure of the data fed into the ANN. In this project, for simplicity, I used players’ data averaged over the whole time period for the respective training and test sets. However, this doesn’t really make sense: for example, the average stats for a player who played a game in 2012 would include data from 2012 to 2017, i.e. from the future. This problem could be remedied, but it would be more challenging to derive the training and test sets. Check out this code on Kaggle for an example of how a (slightly more realistic) statistical Machine Learning approach may be used on this kind of data set.

So, the moral of the story is that it’s relatively straightforward to create a simple AI. There are several libraries out there – such as Pandas, Numpy, Scikit-learn and Tensorflow – to help you out. Hopefully this article has provided you with some ideas and inspiration on how you can apply machine learning techniques for prediction.

Get in touch with the 4CDA team if you would like to learn more on how you can apply machine learning approaches to solve problems!

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

When Algorithms Imitate Nature: Multi-objective Optimisation with NSGA-II and Pymoo

Introduction to Genetic Algorithms?

Why Multi-Objective Optimisation?

From Single Best to Tradeoffs: NSGA-II

Key Concepts

Pareto Fronts

Non-Dominated Storing

Elitism

Crowding Distance

How Does NSGA-II Work?

Example using Pymoo

Problem Statement

Implementing NSGA-II with Pymoo

Results & Visualisation

Applications of NSGA-II

Limitations

In Summary

What is Predictive Maintenance?

Decision Trees and Predictive Maintenance

From Decision Trees to Ensemble Methods: Balancing Transparency and Accuracy

Advanced Algorithms and Industrial-Scale Implementation

Snapshot-Based Modelling for Practical Predictive Maintenance

Example: Applying Decision Trees to Predictive Maintenance

Data Overview and Initial Exploration

Why Use Decision Trees?

Applying Off-the-Shelf Models

Key Finding

Summary of Model Accuracies

Custom-built decision tree

Classification Report: Custom Models vs. Off-the-Shelf Decision Tree

What is feature importance and why does it matter?

Model Interpretability and Deployment

In Summary

What is Discrete Event Simulation (DES)?

DES Approach to Problem Solving

1. Understanding the Process

2. Gathering Statistical Distributions

3. Building the Model

4. History Matching

5. Running the Experiment

DES Software Tools

Example DES Models

Example 1: Basic DES Model – Airport Security

Example 2: Basic DES Model – Gold Beneficiation

Example 3: Basic DES Model – Gold Beneficiation

In Summary

Problem Statement

Dataset Description

Implementation

Visualising sensor signals

Brief sensor analysis

Training the algorithm

Potential (further) improvements

What is an artificial neural network (ANN)?

Project Structure

Step 1: find/create your dataset

Step 2: clean the data

Step 3: organise the data

Step 4: building the ANN

Step 5: feed the data into the ANN

Step 6: verify results

Potential improvements
